Türgriff grau, kpl., OT!

Artikel-Merkmale:

• Länge: 138 mm
• Breite: 69 mm
• Höhe: 12 mm
• Farbe: grau
• Material: Kunststoff

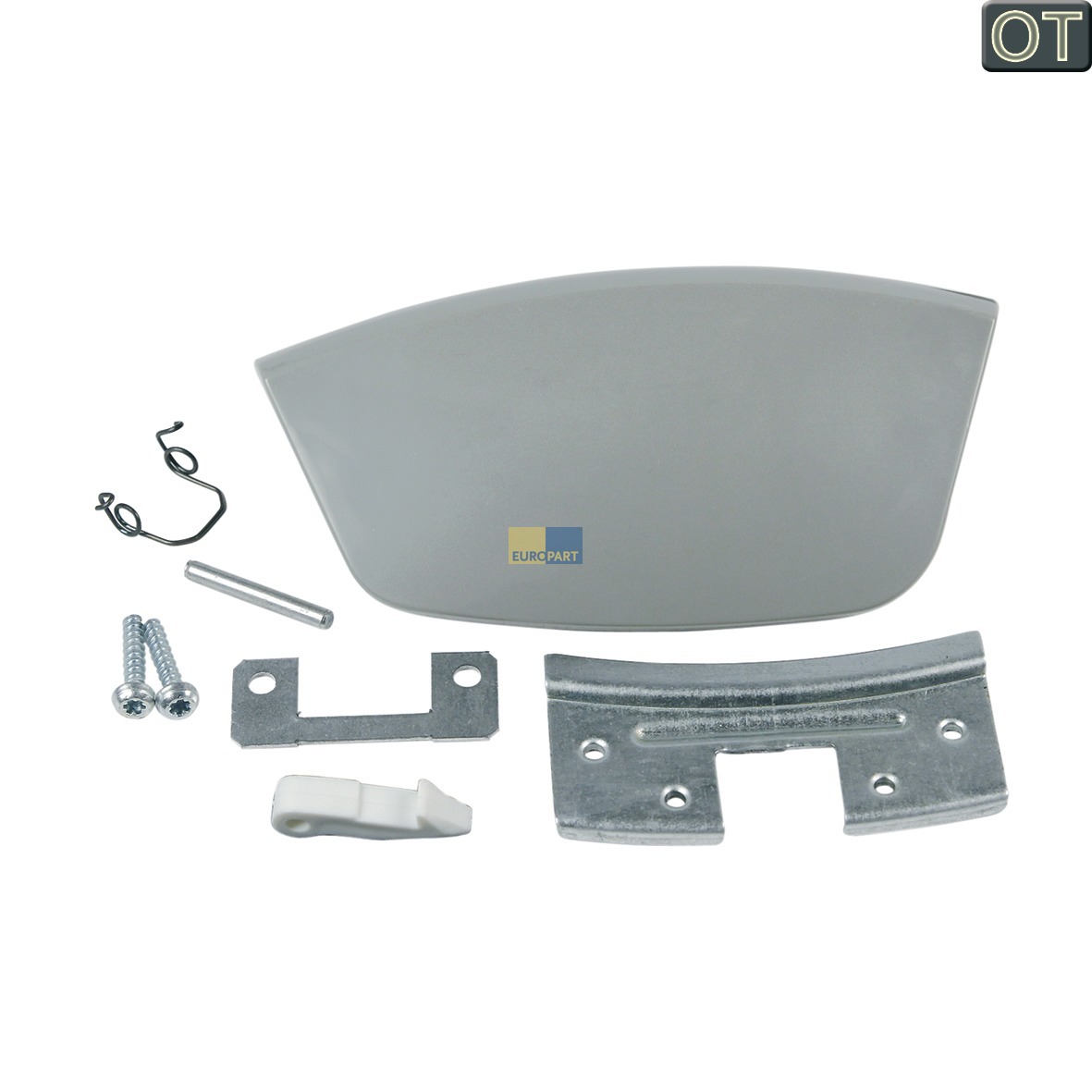

Set komplett mit Schließnase etc., eingesetzt in Waschmaschinen
OT: OriginalTeil Candy/Hoover-Gruppe 49007818.

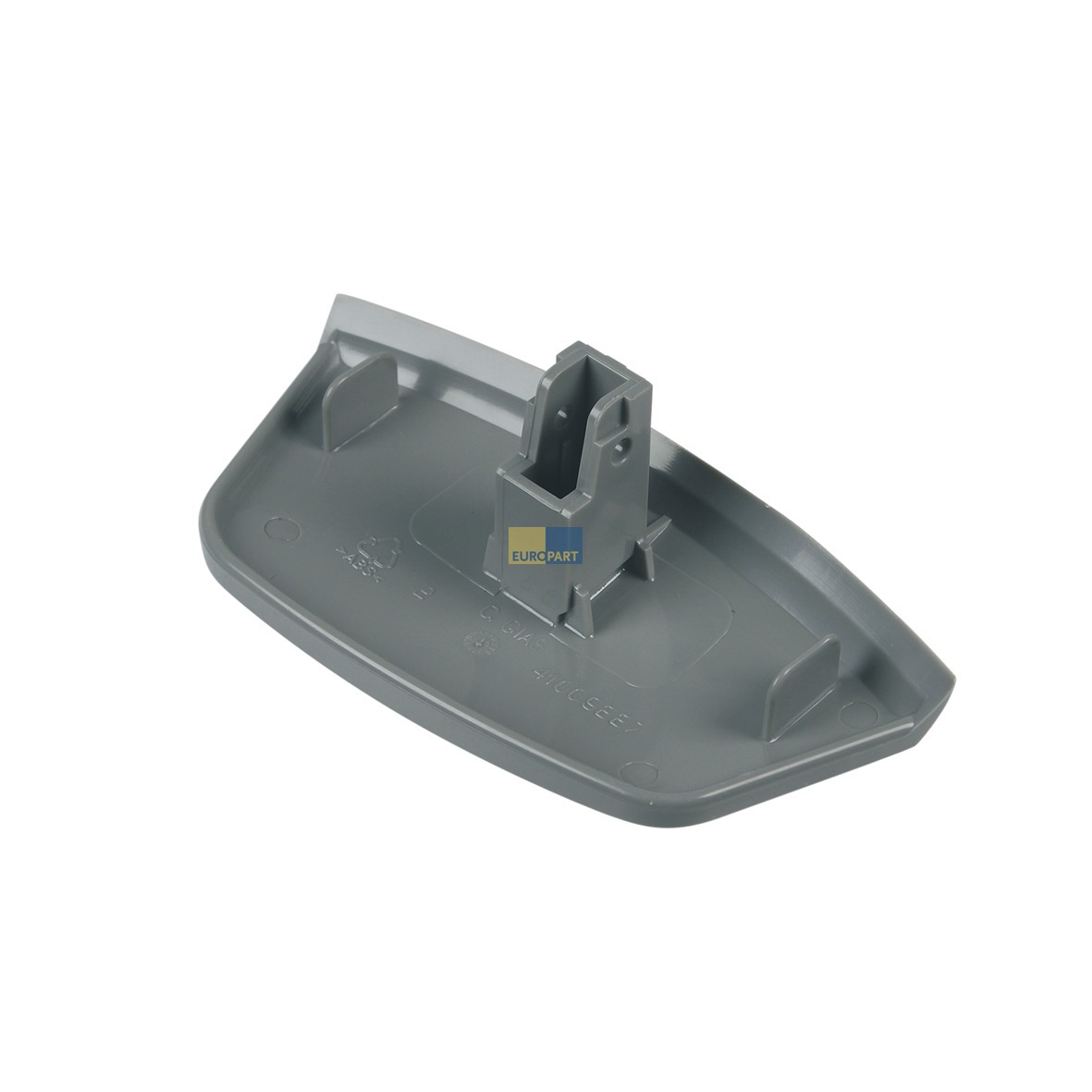

Bestehend u.a. aus Türgriff 41019325, Scharnier 91800563, Bolzen, Schließnase, Feder, Schrauben etc.

Verwendungsabgleich: Benötigte Typenschild-Angaben auf dem Haushaltsgerät (Candy/Hoover-Gruppe):
- Modell
- 8-stellige Matrikel-Nr.
- FD (Fertigungsdatum)
- Marke
Optimal: alle Daten notieren / abgleichen.

Passend u.a. für folgende Geräte Candy/Hoover:
• CKDK66T 31001144 0540 (2005-10-03) 0736 (2007-09-04) Kelvinator
• CN126T80 31000755 0428 (2004-07-05) 0529 (2005-07-22) Candy
• CN136T80 31000753 0428 (2004-07-05) 0529 (2005-07-22) Candy
• CN146T80 31000608 0411 (2004-03-08) 0523 (2005-06-10) Candy
• CN166T40S 31000644 0417 (2004-04-19) 0523 (2005-06-10) Candy
• CN166T80 31000610 0411 (2004-03-08) 0523 (2005-06-10) Candy
• CNA12780 31001207 0603 (2006-01-16) 9953 (2099-12-31) Candy
• CNA13580 31000836 0449 (2004-11-29) 0528 (2005-07-13) Candy
• CNA15680 31000835 0451 (2004-12-13) 0546 (2005-11-15) Candy
• CNA16680 31001059 0528 (2005-07-11) 0838 (2008-09-15) Candy
• CNE165T84 31000767 0441 (2004-10-04) 0523 (2005-06-10) Candy
• CNE169TV83S 31000788 0441 (2004-10-04) 0523 (2005-06-10) Candy
• CNV25680 31000792 0437 (2004-09-06) 0529 (2005-07-22) Candy
• CNV25680 31000686 0422 (2004-05-24) 0546 (2005-11-15) Candy
• CNW136T80 31000609 0413 (2004-03-23) 0625 (2006-06-19) Candy
• CNW156T80 31000607 0413 (2004-03-23) 0625 (2006-06-19) Candy
• CNWD13680 31001215 0603 (2006-01-16) 0739 (2007-09-25) Candy
• CNWD14680 31001214 0603 (2006-01-16) 0728 (2007-07-09) Candy
• FAM120S 31000386 0329 (2003-07-14) 1013 (2010-03-31) Kelvinator
• GEC12EHEW31 31002446 0816 (2008-04-15) 0944 (2009-10-27) General Electric
• H50AT30 31000712 0426 (2004-06-21) 0437 (2004-09-06) Zerowatt
• H60AT30 31000713 0426 (2004-06-21) 0524 (2005-06-13) Zerowatt
• H61AT30 31000774 0437 (2004-09-06) 0524 (2005-06-13) Zerowatt
• HP1180 31000904 0503 (2005-01-17) 0728 (2007-07-09) Hoover
• HP1380 31000872 0503 (2005-01-17) 0742 (2007-10-15) Hoover
• HP1480 31001021 0533 (2005-08-15) 0838 (2008-09-15) Hoover
• HP1680 31001023 0534 (2005-08-22) 0546 (2005-11-15) Hoover
• HPA13580 31001211 0546 (2005-11-18) 0721 (2007-05-25) Hoover
• HPA14680 31001210 0603 (2006-01-16) 0838 (2008-09-15) Hoover
• HPA16680 31001209 0603 (2006-01-16) 0728 (2007-07-09) Hoover
• HPE23680 31001184 0539 (2005-09-26) 0742 (2007-10-15) Hoover
• HPL14584 31001322 0613 (2006-03-27) 0918 (2009-04-28) Hoover
• HPL146184 31001476 0630 (2006-07-24) 0728 (2007-07-09) Hoover
• HPL14684 31001321 0616 (2006-04-18) 0907 (2009-02-12) Hoover
• HPL14684 31001321 0616 (2006-04-18) 0907 (2009-02-12) Hoover
• HPWD13680 31001216 0605 (2006-01-31) 0739 (2007-09-25) Hoover
• HPWD16680 31001213 0605 (2006-01-31) 0728 (2007-07-09) Hoover
• HS60AT30 31000711 0426 (2004-06-21) 0524 (2005-06-13) Zerowatt
• HS61AT30 31000775 0437 (2004-09-06) 0524 (2005-06-13) Zerowatt
• HSP1580 31000873 0511 (2005-03-14) 0546 (2005-11-15) Hoover
• HSP1680 31001218 0552 (2006-01-01) 0945 (2009-11-06) Hoover
• HSPF15780 31001174 0533 (2005-08-15) 0605 (2006-01-31) Hoover
• HSPF16780 31001187 0545 (2005-11-09) 0742 (2007-10-15) Hoover
• HSW14680SOFT 31001060 0519 (2005-05-09) 0945 (2009-11-06) Hoover
• HSWD12680 31001082 0520 (2005-05-16) 0747 (2007-11-23) Hoover
• HSWD14680 31001083 0520 (2005-05-16) 0728 (2007-07-09) Hoover
• HSWD16680 31001084 0523 (2005-06-06) 0728 (2007-07-09) Hoover
• HSWF14780SOFT 31001062 0519 (2005-05-09) 0742 (2007-10-15) Hoover
• HSWF16780SOFT 31001061 0519 (2005-05-09) 0742 (2007-10-15) Hoover
• HWD12080 31001037 0518 (2005-05-02) 0747 (2007-11-23) Hoover
• HWP1280 31000896 0505 (2005-01-31) 0547 (2005-11-25) Hoover
• HY60AT30 31000709 0426 (2004-06-21) 0524 (2005-06-13) Zerowatt
• IBL120 31001648 0703 (2007-01-15) 0924 (2009-06-09) Iberna
• IBL80 31002174 0746 (2007-11-12) 0920 (2009-05-15) Iberna
• LBCN116TUK 31000495 0344 (2003-10-27) 0507 (2005-02-15) Candy
• LBCN126TUK 31000501 0344 (2003-10-27) 0507 (2005-02-15) Candy
• LBCN136TUK 31000503 0345 (2003-11-03) 0507 (2005-02-15) Candy
• LBCN150TUK 31000502 0347 (2003-11-21) 0507 (2005-02-15) Candy
• LBCNA14580 31001058 0525 (2005-06-20) 0721 (2007-05-25) Candy
• LBFAM100S 31000387 0329 (2003-07-14) 0524 (2005-06-13) Kelvinator
• LBFAM60 31000389 0325 (2003-06-16) 0524 (2005-06-13) Kelvinator
• LBFAM80 31000388 0325 (2003-06-16) 0524 (2005-06-13) Kelvinator
• LBK45T04S 31000586 0417 (2004-04-19) 0612 (2006-03-21) Kelvinator
• LBK65T04S 31000585 0417 (2004-04-19) 0612 (2006-03-21) Kelvinator
• LBK66T04S 31000587 0417 (2004-04-19) 0612 (2006-03-21) Kelvinator
• LBK86T4S 31000588 0417 (2004-04-19) 0612 (2006-03-21) Kelvinator
• LBKWD100604S 31000589 0417 (2004-04-19) 0612 (2006-03-21) Kelvinator
• LBSA100S 31000391 0328 (2003-07-07) 0524 (2005-06-13) Kelvinator
• LBSA80 31000392 0328 (2003-07-07) 0524 (2005-06-13) Kelvinator
• LBWA1410AA 31000551 0350 (2003-12-09) 0543 (2005-10-24) Friac
• PFA13780 31000840 0447 (2004-11-15) 0605 (2006-01-31) Hoover
• PFA16780 31000839 0447 (2004-11-15) 0605 (2006-01-31) Hoover
• PFW13580 31000844 0452 (2004-12-20) 0625 (2006-06-19) Hoover
• PPA13680 31000845 0446 (2004-11-08) 0605 (2006-01-31) Hoover
• PPA14680 31000838 0446 (2004-11-08) 0605 (2006-01-31) Hoover
• PPW12680 31000842 0451 (2004-12-13) 0607 (2006-02-15) Hoover
• PPW16680 31000841 0451 (2004-12-13) 0625 (2006-06-19) Hoover
• TKX113WD 31001320 0616 (2006-04-18) 0919 (2009-05-06) Teka
• WA1610AAAFRIA 31000734 0427 (2004-07-01) 0728 (2007-07-09) Friac

• Candy (CandyHoover-Gruppe)


• CandyHoover-Gruppe: Candy Hoover Rosieres Zerowatt..
41009227 (Tuer-Griffgruppe) -> 49007818
49003783 (Tuer-Griffgruppe) -> 49007818
49007818 (Tür-Griffgruppe)
enthalten: 41019325 (Türgriff)
enthalten: 91800563 (Scharnier)

• Friac


• GeneralElectric GE


• Hoover (CandyHoover-Gruppe)


• Iberna


• Kelvinator


• Teka-Küchentechnik


• Zerowatt (CandyHoover-Gruppe)
