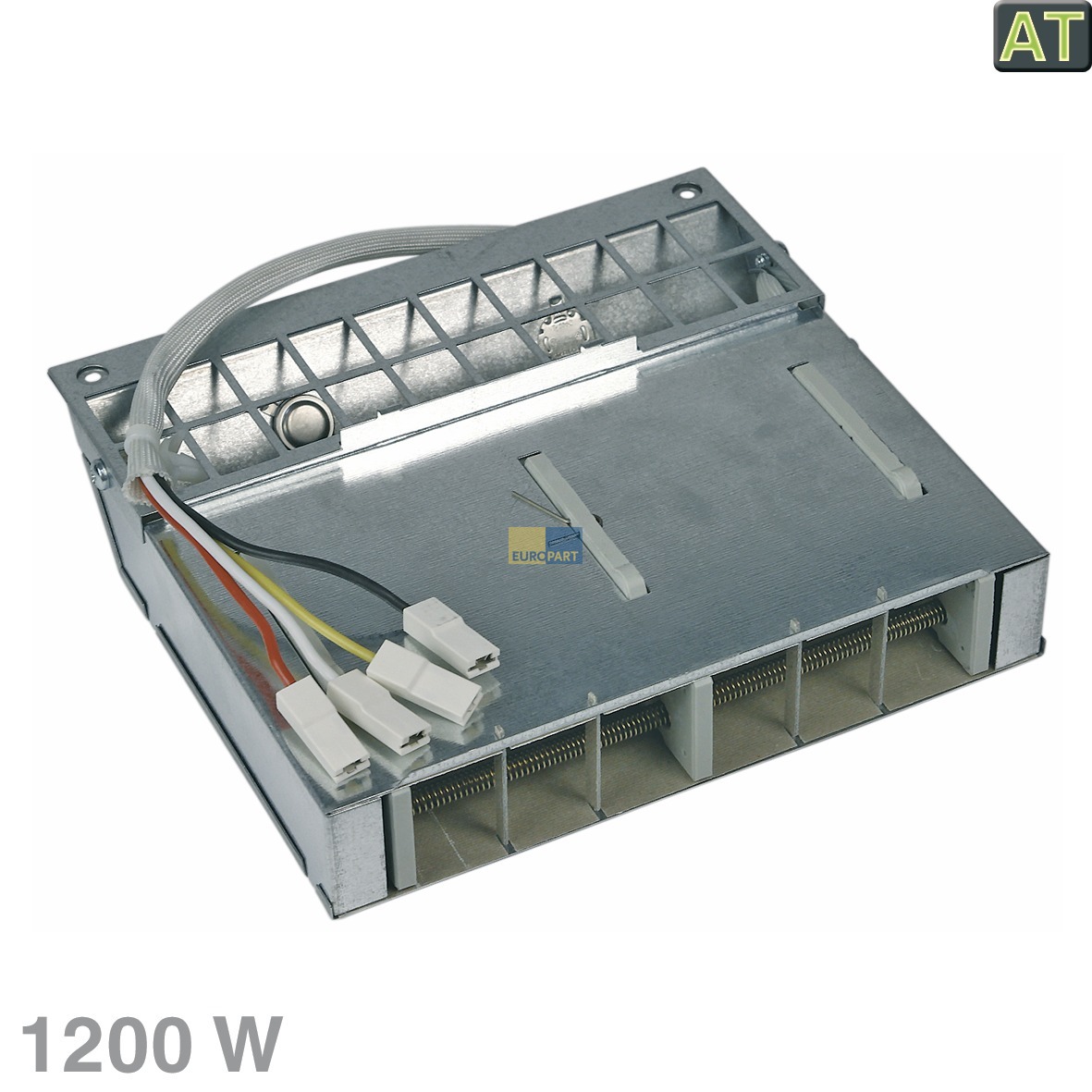

Heizelement Heizregister 1200W 240V

Artikel-Merkmale:

• Länge: 192 mm
• Breite: 176 mm
• Höhe: 37 mm
• Anschlüsse: 4 x 6,3 mm

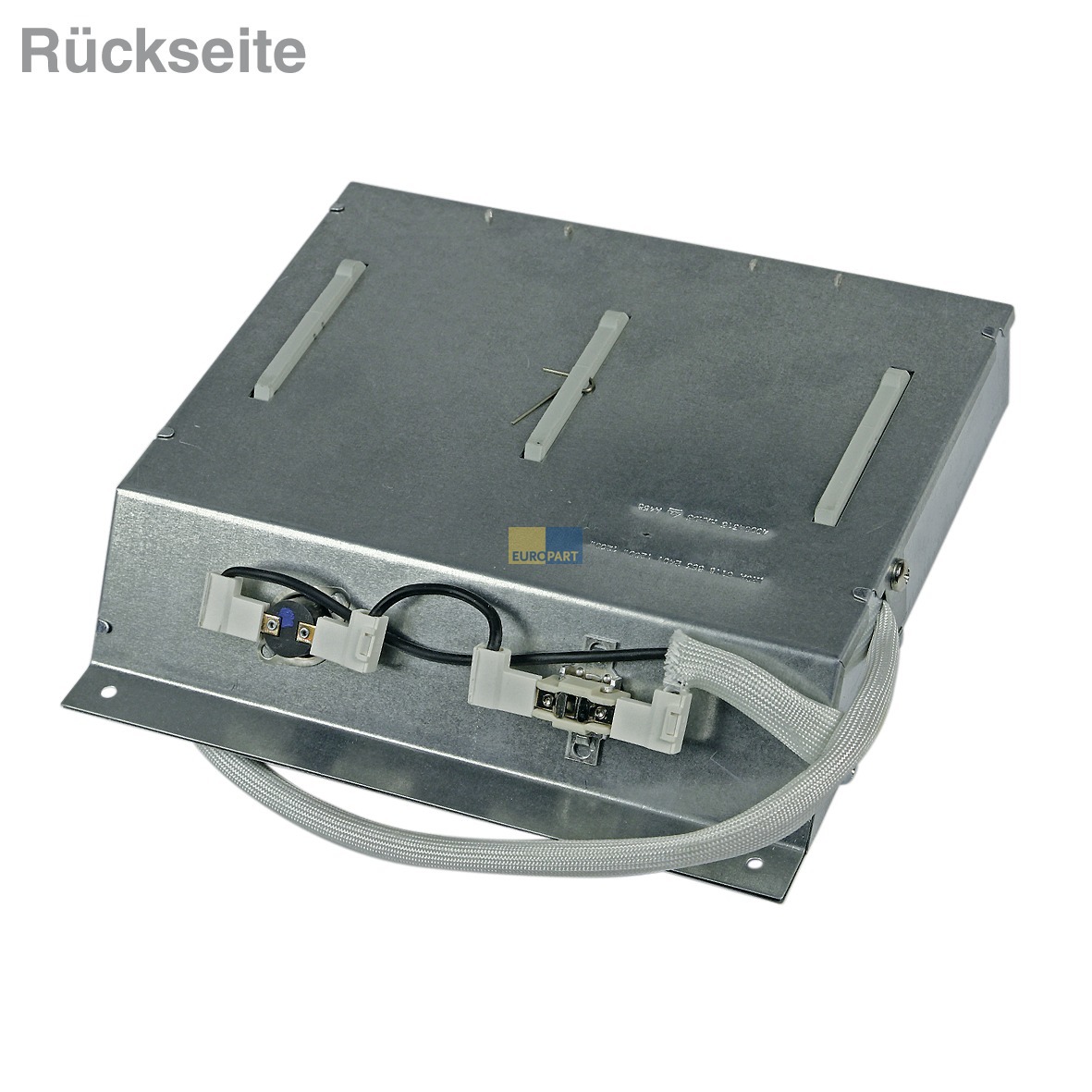

mit 2 Temperaturbegrenzern, eingesetzt in Trocknern
AT: AlternativTeil, passend u.a. wie Candy/Hoover-Gruppe 40004315.

Verwendungsabgleich: Benötigte Typenschild-Angaben auf dem Haushaltsgerät (Candy/Hoover-Gruppe):
- Modell
- 8-stellige Matrikel-Nr.
- FD (Fertigungsdatum)
- Marke
Optimal: alle Daten notieren / abgleichen

Tipp:  Häufig ist mangelnder Luftdurchsatz die Ursache für durchgebrannte Heizelemente. Vor dem Austausch bitte unbedingt Gerät säubern!

Passend u.a. für folgende Geräte:
• ABCDC179X88 31100080 0434 (2004-08-16) 0605 (2006-02-02) Candy
• ABCDC263 31100037 0338 (2003-09-15) 0448 (2004-11-22) Candy
• ABCDC266 31100026 0413 (2004-03-22) 0638 (2006-09-18) Candy
• ABCDC266X 31100039 0338 (2003-09-15) 0448 (2004-11-22) Candy
• ABCDC268TEX 31100038 0339 (2003-09-22) 0448 (2004-11-22) Candy
• ABCDC679XT88 31100086 0434 (2004-08-16) 0638 (2006-09-18) Candy
• ABCDC779XT88 31100089 0434 (2004-08-16) 0605 (2006-02-02) Candy
• ABCDE10580 31100056 0422 (2004-05-24) 0607 (2006-02-15) Candy
• ABCDV160SY 31100073 0430 (2004-07-19) 0546 (2005-11-15) Candy
• ABCDV262 31100032 0326 (2003-06-23) 0448 (2004-11-22) Candy
• ABCDV262 31100031 0339 (2003-09-22) 0431 (2004-07-28) Candy
• ABCDV265E 31100035 0334 (2003-08-18) 0448 (2004-11-22) Candy
• ABCDV265EX 31100036 0334 (2003-08-18) 0448 (2004-11-22) Candy
• ABCDV66037 31100075 0431 (2004-07-26) 0546 (2005-11-15) Candy
• ABCDV66047 31100076 0434 (2004-08-16) 0546 (2005-11-15) Candy
• ABCDV660SY 31100074 0430 (2004-07-19) 0547 (2005-11-25) Candy
• ABCDV671XSY 31100077 0430 (2004-07-19) 0547 (2005-11-25) Candy
• ABCIC200UK 37615143 9915 (1999-04-16) 0148 (2001-11-26) Candy
• ABCIC200X 37615192 9925 (1999-06-21) 0130 (2001-07-24) Candy
• ABCIC200XES 37615762 9935 (1999-09-01) 0137 (2001-09-10) Candy
• ABCIC209XCH 31100002 0210 (2002-03-08) 0340 (2003-09-30) Candy
• ABCIC60 37616489 0130 (2001-07-23) 0431 (2004-07-28) Candy
• ABHDC6 31100025 0321 (2003-05-19) 0547 (2005-11-25) Hoover
• ABHDC60E 31100047 0341 (2003-10-06) 0448 (2004-11-22) Hoover
• ABHDC75TEXCH 31100045 0341 (2003-10-06) 0448 (2004-11-22) Hoover
• ABHDC7FM 31100024 0323 (2003-06-02) 0547 (2005-11-25) Hoover
• ABHDC7FME 31100028 0329 (2003-07-14) 0448 (2004-11-22) Hoover
• ABHDC7UK 31100016 0241 (2002-10-07) 0316 (2003-04-18) Hoover
• ABHDV60SY 31100050 0340 (2003-09-29) 0448 (2004-11-22) Hoover
• ABHDV70EX 31100055 0345 (2003-11-03) 0506 (2005-02-11) Hoover
• ABHDV70XSY 31100052 0339 (2003-09-22) 0448 (2004-11-22) Hoover
• ABHDV75EX 31100049 0334 (2003-08-18) 0448 (2004-11-22) Hoover
• ABHNC17080 31100066 0424 (2004-06-07) 0638 (2006-09-18) Hoover
• ABHNC170S80 31100065 0426 (2004-06-21) 0536 (2005-09-09) Hoover
• ABHNC27080 31100064 0425 (2004-06-14) 0536 (2005-09-09) Hoover
• ABHNC271X 31100093 0428 (2004-07-05) 0605 (2006-02-02) Hoover
• ABHNC770T 31100063 0427 (2004-06-28) 0536 (2005-09-09) Hoover
• ABHNV271X 31100101 0428 (2004-07-05) 0547 (2005-11-25) Hoover
• ABITD55CX 31100010 0235 (2002-08-26) 0448 (2004-11-22) Iberna
• ABOHDV6 31100043 0334 (2003-08-18) 0448 (2004-11-22) Otsein-Hoover
• ABOHDV70 31100004 0225 (2002-06-17) 0405 (2004-01-28) Otsein-Hoover
• ABOHDV7EX 31100041 0339 (2003-09-22) 0448 (2004-11-22) Otsein-Hoover
• ABOHDV7X 31100042 0338 (2003-09-15) 0448 (2004-11-22) Otsein-Hoover
• ABOHNC475S 31100132 0537 (2005-09-14) 0638 (2006-09-18) Candy
• ABOHNV271X 31100107 0439 (2004-09-20) 0547 (2005-11-25) Hoover
• ABTC50001 37615317 9926 (1999-06-30) 0121 (2001-05-22) Hoover
• ABTC650001 37616323 0115 (2001-04-09) 0340 (2003-09-30) Hoover
• ABTCE60001 37615358 9926 (1999-06-30) 0113 (2001-03-27) Hoover
• ABTCE660001 37616331 0115 (2001-04-09) 0316 (2003-04-18) Hoover
• ABTKS3851 31100003 0224 (2002-06-10) 0506 (2005-02-11) Teka
• ABTKS60002 31100020 0318 (2003-04-28) 0506 (2005-02-11) Teka
• ABTKS6000E 31100021 0335 (2003-08-25) 0506 (2005-02-11) Teka
• CC21780 31100166 0541 (2005-10-10) 0739 (2007-09-25) Candy
• CC217-80 ./. ./. ./. Candy
• CC21788 31100169 0542 (2005-10-17) 0820 (2008-05-14) Candy
• CC217-88 ./. ./. ./. Candy • CC26780 31100167 0541 (2005-10-10) 0739 (2007-09-25) Candy
• CC267-80 ./. ./. ./. Candy
• CC267T88 31100168 0541 (2005-10-10) 0820 (2008-05-14) Candy
• CC267T-88 ./. ./. ./. Candy • CDC179X-88 ./. ./. ./. Candy • CDC263CH ./. ./. ./. Candy • CDC266UK ./. ./. ./. Candy • CDC266XCH ./. ./. ./. Candy • CDC268TEXCH ./. ./. ./. Candy • CDC679XT-88 ./. ./. ./. Candy • CDC779XT-88 ./. ./. ./. Candy • CDE105-80 ./. ./. ./. Candy
• CDE10780 31100174 0605 (2006-01-31) 0742 (2007-10-15) Candy
• CDE107-80 ./. ./. ./. Candy
• CDV160-SY** ./. ./. ./. Candy • CDV262 ./. ./. ./. Candy • CDV26204ARG 31100057 0422 (2004-05-24) 0742 (2007-10-15) Candy
• CDV262-04ARG** ./. ./. ./. Candy • CDV262ES ./. ./. ./. Candy • CDV265E ./. ./. ./. Candy • CDV265EX ./. ./. ./. Candy • CDV660-37 ./. ./. ./. Candy • CDV660-47 ./. ./. ./. Candy
• CDV660-SY ./. ./. ./. Candy
• CDV671XSY ./. ./. ./. Candy
• CIC200UK, ./. ./. ./. Candy
• CIC200X ./. ./. ./. Candy
• CIC200XES ./. ./. ./. Candy
• CIC209XCH ./. ./. ./. Candy
• CIC60 ./. ./. ./. Candy
• DK6115ELO83 31100070 0427 (2004-06-28) 0739 (2007-09-25) Friac
• GOC21880 31100213 0721 (2007-05-21) 0939 (2009-09-22) Candy
• HDC60ECH ./. ./. ./. Hoover
• HDC6UK ./. ./. ./. Hoover
• HDC75TEXCH ./. ./. ./. Hoover
• HDC7FME ./. ./. ./. Hoover
• HDC7FMUK ./. ./. ./. Hoover
• HDC7UK ./. ./. ./. Hoover
• HDV60SY ./. ./. ./. Hoover
• HDV70EXFR ./. ./. ./. Hoover
• HDV70XSY ./. ./. ./. Hoover
• HDV75EXDE ./. ./. ./. Hoover
• HNC16080 31100067 0646 (2006-11-13) 0739 (2007-09-25) Hoover
• HNC160-80 ./. ./. ./. Hoover
• HNC170-80 ./. ./. ./. Hoover
• HNC170S-80 ./. ./. ./. Hoover
• HNC17280 31100184 0624 (2006-06-12) 0638 (2006-09-18) Hoover
• HNC172-80 ./. ./. ./. Hoover
• HNC172S80 31100183 0627 (2006-07-03) 0638 (2006-09-18) Hoover
• HNC172S-80 ./. ./. ./. Hoover
• HNC17580 31100140 0527 (2005-07-06) 0739 (2007-09-25) Hoover
• HNC175-80 ./. ./. ./. Hoover
• HNC175S80 31100141 0527 (2005-07-06) 0638 (2006-09-18) Hoover
• HNC175S-80 ./. ./. ./. Hoover
• HNC180-80 ./. ./. ./. Hoover
• HNC180S-80 ./. ./. ./. Hoover
• HNC270-80 ./. ./. ./. Hoover
• HNC271X ./. ./. ./. Hoover
• HNC375T80 31100142 0534 (2005-08-22) 0638 (2006-09-18) Hoover
• HNC375T-80 ./. ./. ./. Hoover
• HNC375T88 31100170 0545 (2005-11-07) 0638 (2006-09-18) Hoover
• HNC375T-88 ./. ./. ./. Hoover
• HNC38080 31100182 0625 (2006-06-19) 0748 (2007-11-28) Hoover
• HNC380-80 ./. ./. ./. Hoover
• HNC382T80 31100181 0626 (2006-06-26) 0748 (2007-11-28) Hoover
• HNC382T-80 ./. ./. ./. Hoover
• HNC770T-80 ./. ./. ./. Hoover
• HNC771XT 31100096 0429 (2004-07-12) 0739 (2007-09-25) Hoover
• HNC771XT ./. ./. ./. Hoover
• HNC775T80 31100143 0533 (2005-08-15) 0748 (2007-11-28) Hoover
• HNC775T-80 ./. ./. ./. Hoover
• HNV160SY 31100091 0428 (2004-07-05) 0940 (2009-10-02) Hoover
• HNV160-SY** ./. ./. ./. Hoover
• HNV171XSY 31100102 0428 (2004-07-05) 0940 (2009-10-02) Hoover
• HNV171X-SY** ./. ./. ./. Hoover
• HNV271X-89 ./. ./. ./. Hoover
• HNV771X 31100100 0429 (2004-07-12) 0748 (2007-11-28) Hoover
• HNV771X ./. ./. ./. Hoover
• HSC17080 31100144 0538 (2005-09-19) 0742 (2007-10-15) Hoover
• HSC170-80 ./. ./. ./. Hoover
• IDC60 31100103 0436 (2004-09-01) 0910 (2009-03-06) Iberna
• KIT HNC171SY ./. ./. ./. Hoover
• KITABHNC171SY 31100108 0451 (2004-12-13) 0910 (2009-03-06) Hoover
• OHNC272X37 31100105 0439 (2004-09-20) 0748 (2007-11-28) Otsein-Hoover
• OHNV171X37 31100058 0435 (2004-08-23) 0739 (2007-09-25) Otsein
• OHNV273X37 31100106 0439 (2004-09-20) 0748 (2007-11-28) Otsein
• PFC17080 31100111 0450 (2004-12-08) 0739 (2007-09-25) Hoover
• PFC170-80 ./. ./. ./. Hoover
• PPC16080 31100112 0450 (2004-12-08) 0739 (2007-09-25) Hoover
• PPC160-80 ./. ./. ./. Hoover
• PPC160J80 31100113 0503 (2005-01-17) 0607 (2006-02-15) Hoover
• PPC160J-80 ./. ./. ./. Hoover
• TC50 001 ./. ./. ./. Hoover
• TC650 001 ./. ./. ./. Hoover
• TCE60 001 ./. ./. ./. Hoover
• TCE660 001 ./. ./. ./. Hoover
• VHC18080 31100236 0723 (2007-06-04) 0916 (2009-04-15) Hoover
